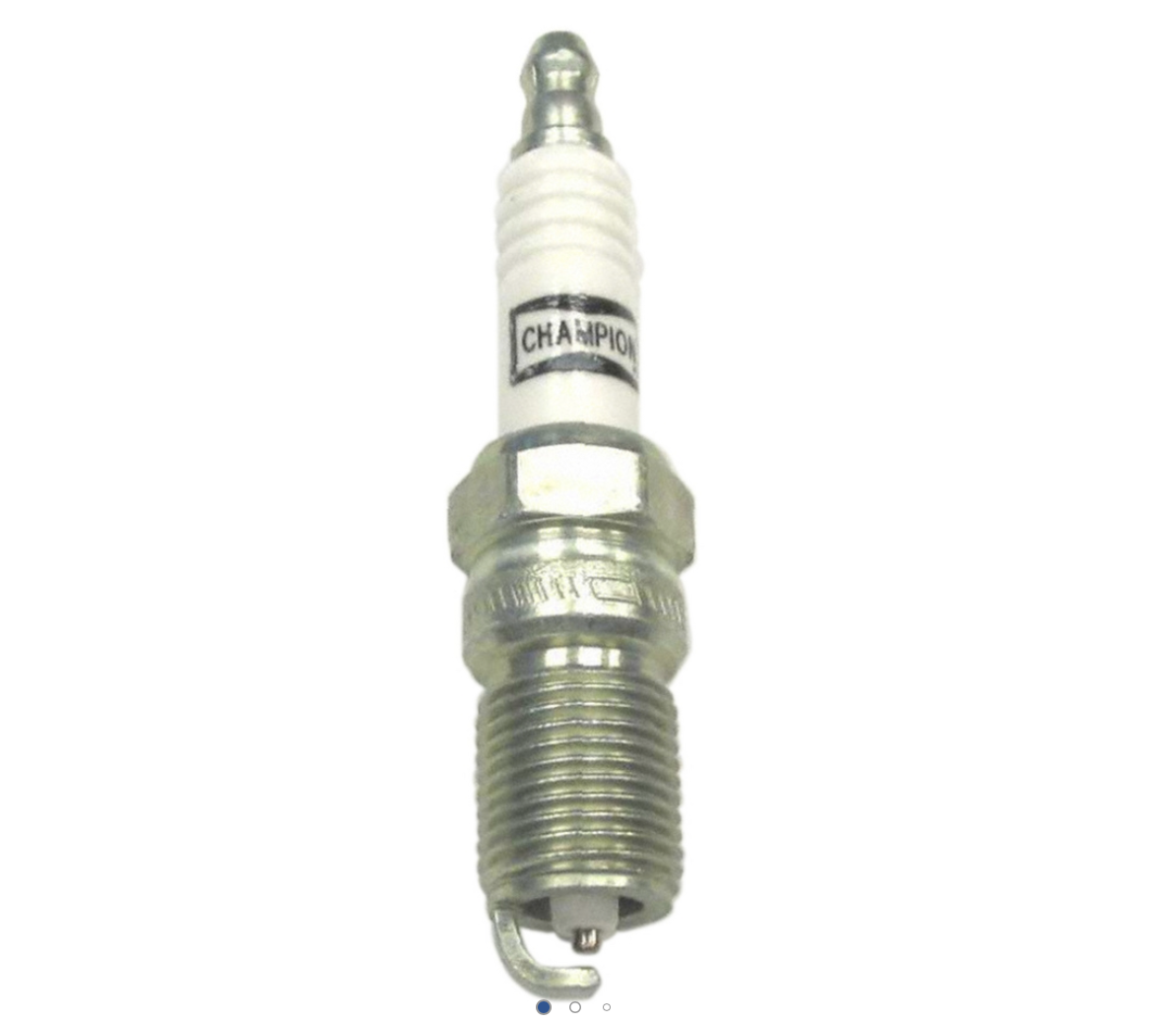

Platinum Power Spark Plug RS10PYC

Platinum Power- Premium Spark Plug. Powerful Performance.

Platinum center electrode for long life

Fine-wire center electrode for greater ignitability

V-trimmed ground electrode promotes sharper spark focus

Heat-ActiveTM alloy allows electrodes to reach optimal temperature

Platinum tipped center wire resists wear and helps to maintain proper gap spec over life of the plug
Specifikationer
Reach:
0.689 Inch
Indexed:
No
Hex Size:
0.625"
Hex Type:
Hex
Plug Type:
RS10PYC
Seat Type:
Tapered
Grade Type:
Standard Replacement
Pre-Gap Size:
1.12 MM
Resistor Type:
Yes
Classification:
Champion Platinum Power
Thread Diameter:
0.551 Inch
Insulator Height:
0.06"
Washer(s) Included:
No
Taper Diameter (Inch):
0.25 Inch
Center Electrode Design:
Standard
Installed Height (Inch):
2.05"
Manufacturer Heat Range:
10
Electrical Terminal Type:
Non-removable Nut
Ground Electrode Material:
Nickel Copper Alloy
Ground Electrode Quantity:
1
Insulator Projection (Inch):
0.06"
Center Electrode Tip Material:
Platinum
Ground Electrode Tip Material:
Nickel
Ground Electrode Core Material:
Nickel
Center Electrode Diameter (Inch):
0.078"
