Product Line:

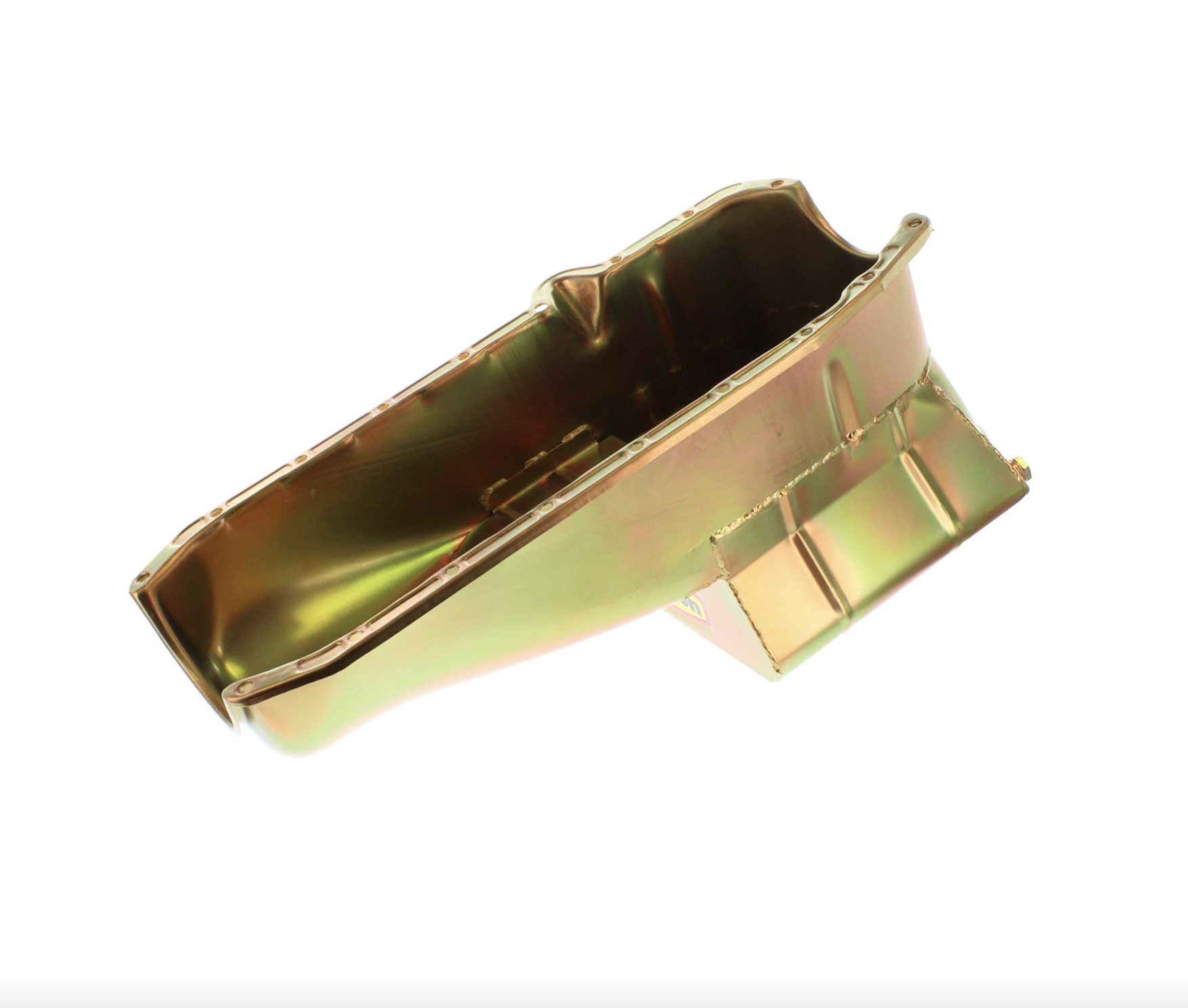

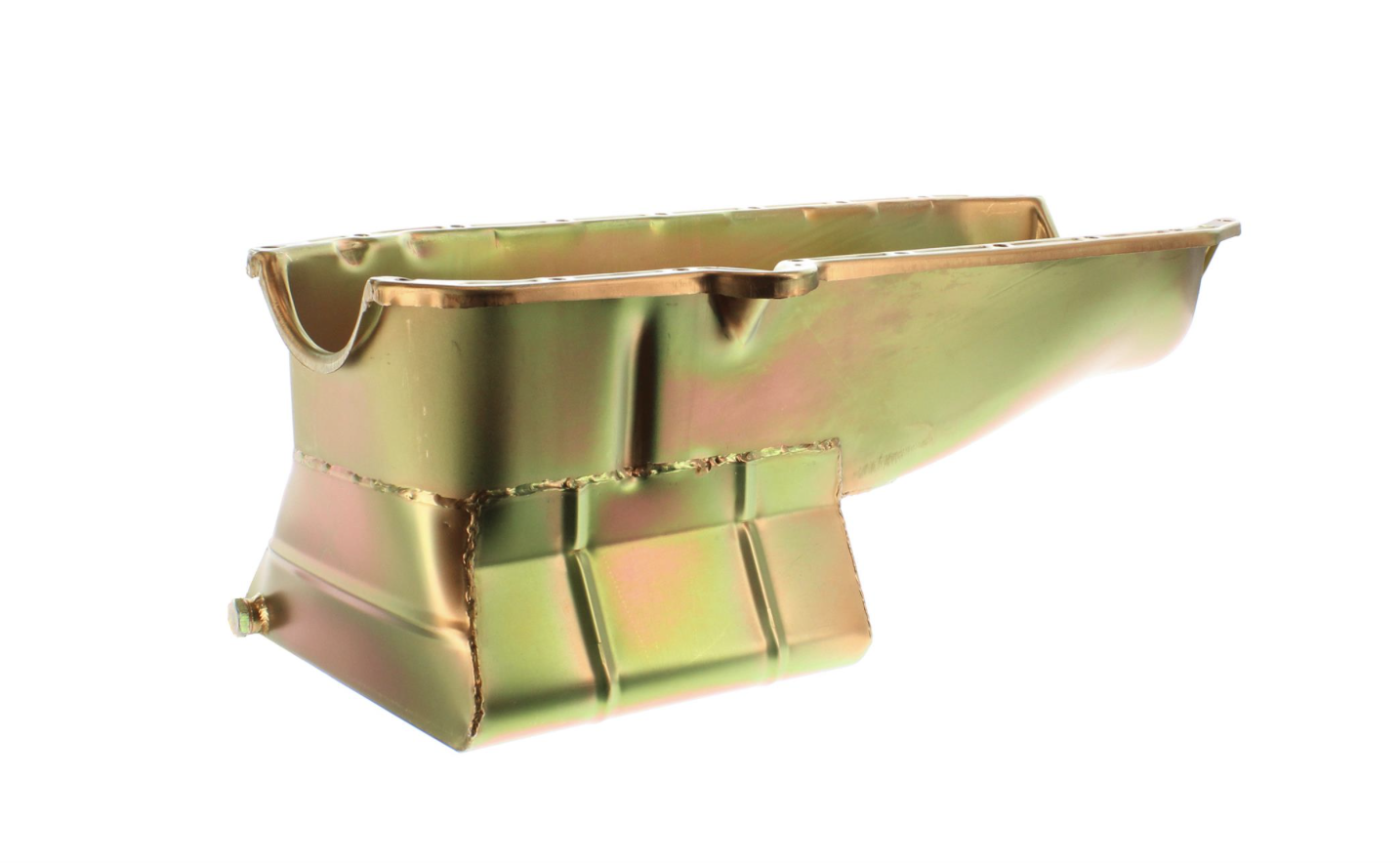

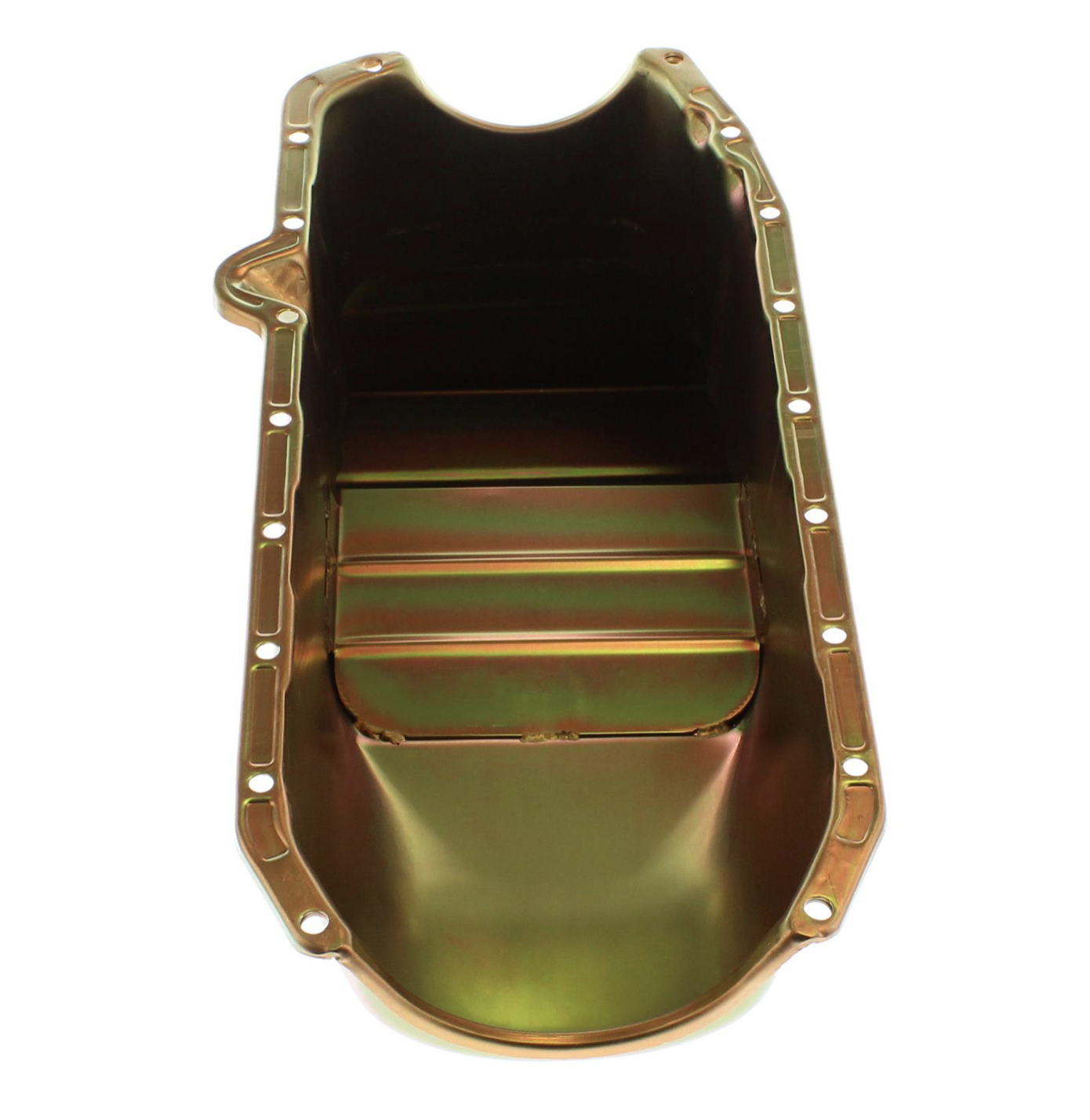

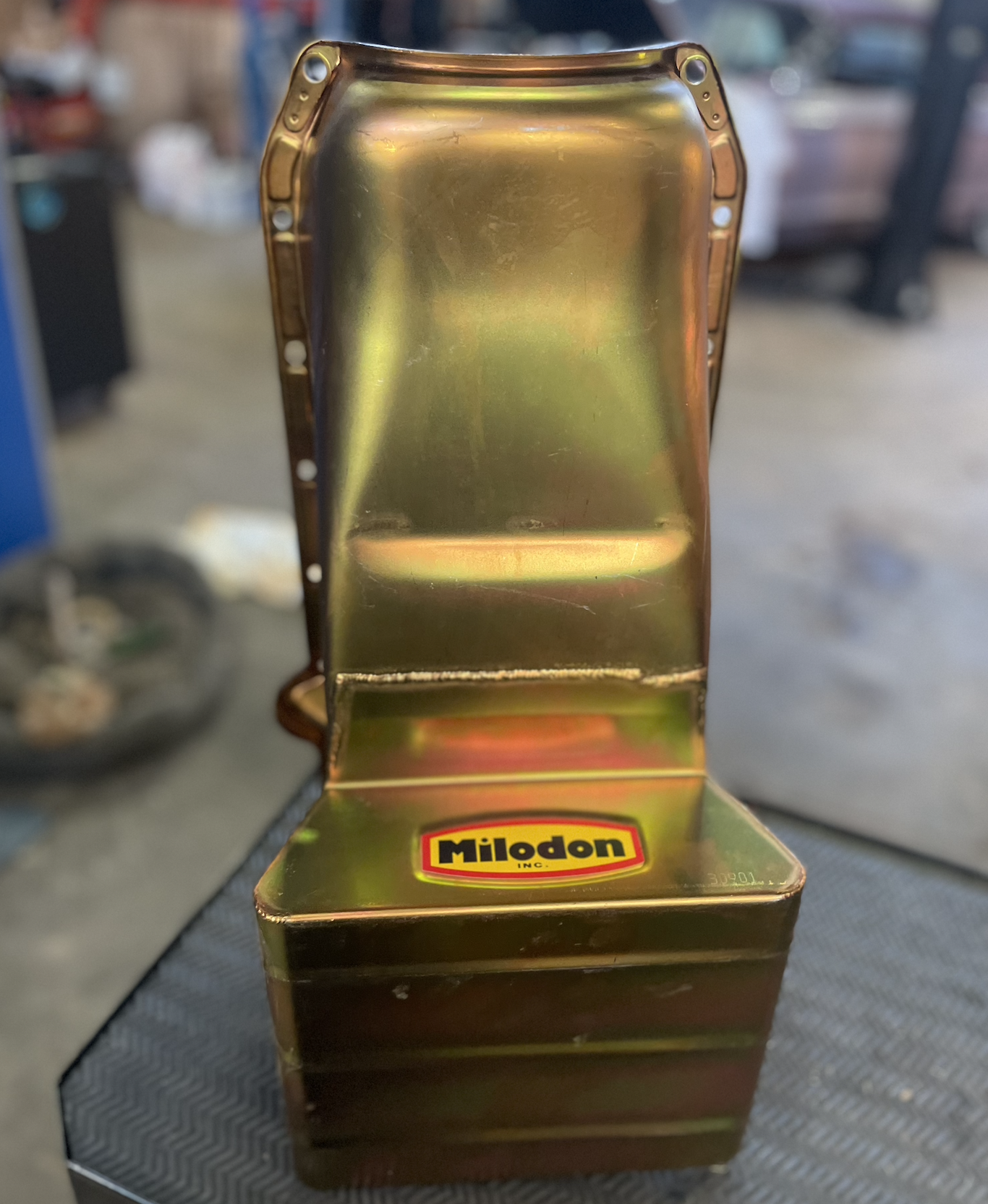

Milodon Street and Strip Oil Pans
Summit Racing Part Number:
MIL-30901
UPC:
806621309016
Sump Style:
Wet
Oil Pan Style:
Street/Strip
Rear Main Seal Style:
2-piece
Sump Location:
Rear
Dipstick Location:
Passenger side
Oil Pan Capacity:
7.00 quarts
Stroker Clearanced:
No
Maximum Stroke with OE Rod:
3.750 in.
Dipstick Provision:
Yes
Dipstick Included:
No
Oil Pan Depth (in.):
8.250
Oil Pan Material:
Steel
Oil Pan Color:
Gold
Baffled:
Yes
Kicked Out:
Yes
Kickout Position:
Driver and passenger side
Windage Tray Included:
No
Pickup Included:
No
Oil Pump Included:
No
Oil Pump Driveshaft Included:
No
Crank Scraper Included:
No
Drain Plug Thread Size:
1/2 in.-20
Gaskets Included:
No
Hardware Included:
No
Quantity:
Sold individually.
Notes:
Requires thick front seal. It will fit all Chevy chassis, except '62-'67 Nova. Oil pan front depth is 3.875 in.
